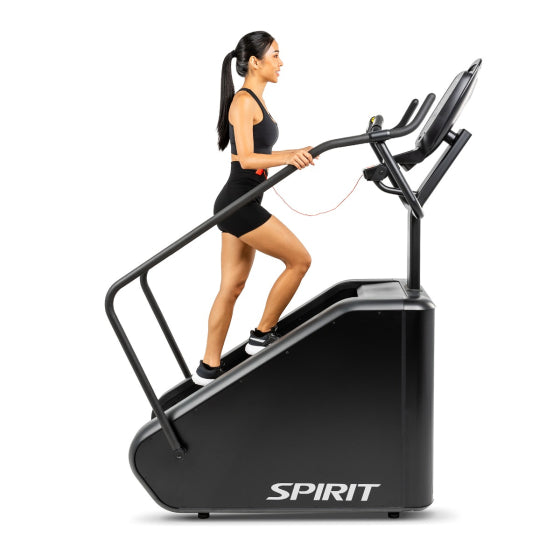

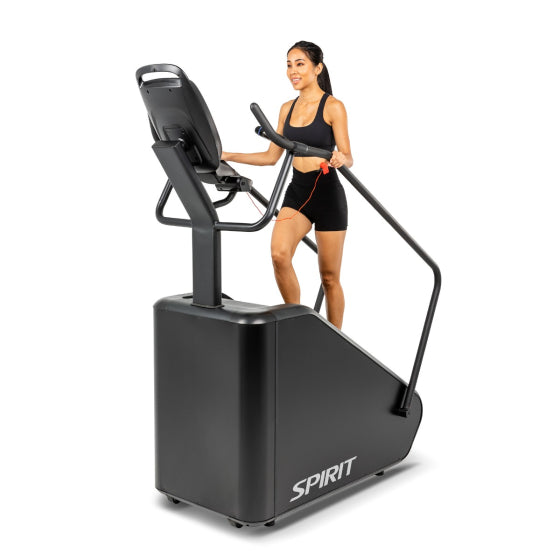

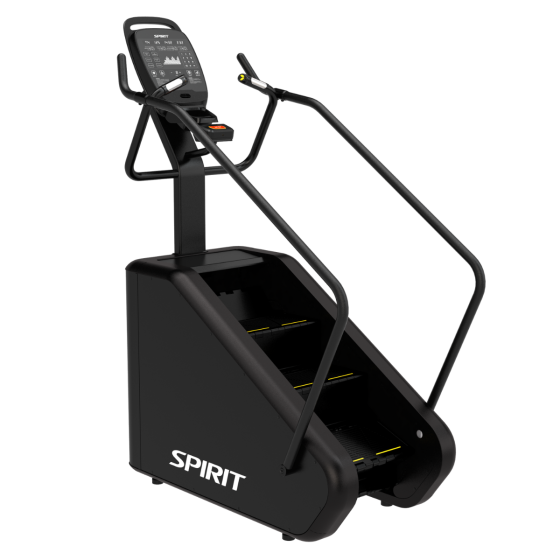

Spirit CSC880 Stairclimber
- 8’ minimum ceiling height
- Step dimensions: 17.7" L x 11" W x 7" H
- Compact design — perfect for limited spaces
- Handlebar mounted resistance with start and stop controls
- Built-in 2-speed cooling fan and accessory holder
Contact Sales Rep
| Motor | EMS Magnetic Control Wheel |
| Power | 120V/15A Cord/Outlet |
| Drive System | Chain and Poly-V Belt with Electromagnetic Induction Brake |
| Steps per Minute | 25 - 157 |
| Magnetic Resistance Levels | 0 - 20 |

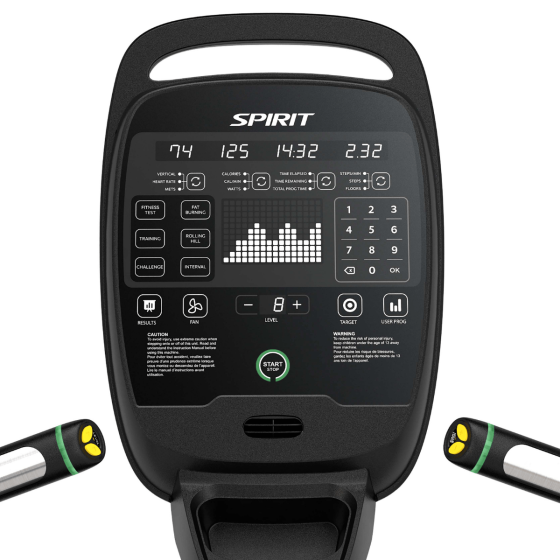

| Display | 6 LED Windows |
| Display Size | 4.5” diagonal |
| Feedback | Program, Level, Vertical Distance, Heart Rate, METS, Calories, Calories per Minute, Watts, Time, Steps per Minute, Steps, Floors |
| Programs | WFI and CPAT Fitness Tests, Fat Burning, Training, Rolling Hills, Challenge, Interval, Target (3 options), User Program |
| Frame Material | Commercial-Grade Steel Frame with Plastic Coverings |
| Steps | 7 Total Steps with ABS Lining |
| Step Area | 17.7” L x 11” W x 7” H |
| Ground to First Step Height | 11.8” |
| Between Step Height | 7” |
| Step Depth | 11” |
| Handrails | Steel Handrails with Durable Grip Coating |
| Handlebar Controls | Yes |
| Hand Pulse Sensors | Yes |
| Bluetooth Heart Rate Receiver | Included (Chest Strap Sold Separately) |
| Emergency Stop | Yes |
| Reading/Accessory Rack | Yes |
| Cooling Fan | Yes |
| Transportation Wheels | Yes |
| Set-Up Dimension | 62.7" L x 31" W x 78.6" H |
| Box Dimension | 57.3" L x 32.7" W x 43.9" H |
| Item Weight | 370 lb |
| Box Weight | 520 lb |
| Max User Weight Capacity | 330 lb |
| Minimum Ceiling Height Required | 8 ft |
| US Commercial Warranty - Frame | 10 Years |
| US Commercial Warranty - Brake | 5 Years |
| US Commercial Warranty - Parts | 3 Years |
| US Commercial Warranty - Labor | 3 Years |
| US Commercial Warranty - Wear Items | 6 Months |
| US Light Commercial Warranty - Frame | 10 Years |
| US Light Commercial Warranty - Brake | 5 Years |
| US Light Commercial Warranty - Parts | 5 Years |
| US Light Commercial Warranty - Labor | 2 Years |
| US Light Commercial Warranty - Wear Items | 6 Months |
| Warranty Exclusion | Prisons and correctional facilities are excluded from warranty coverage |
